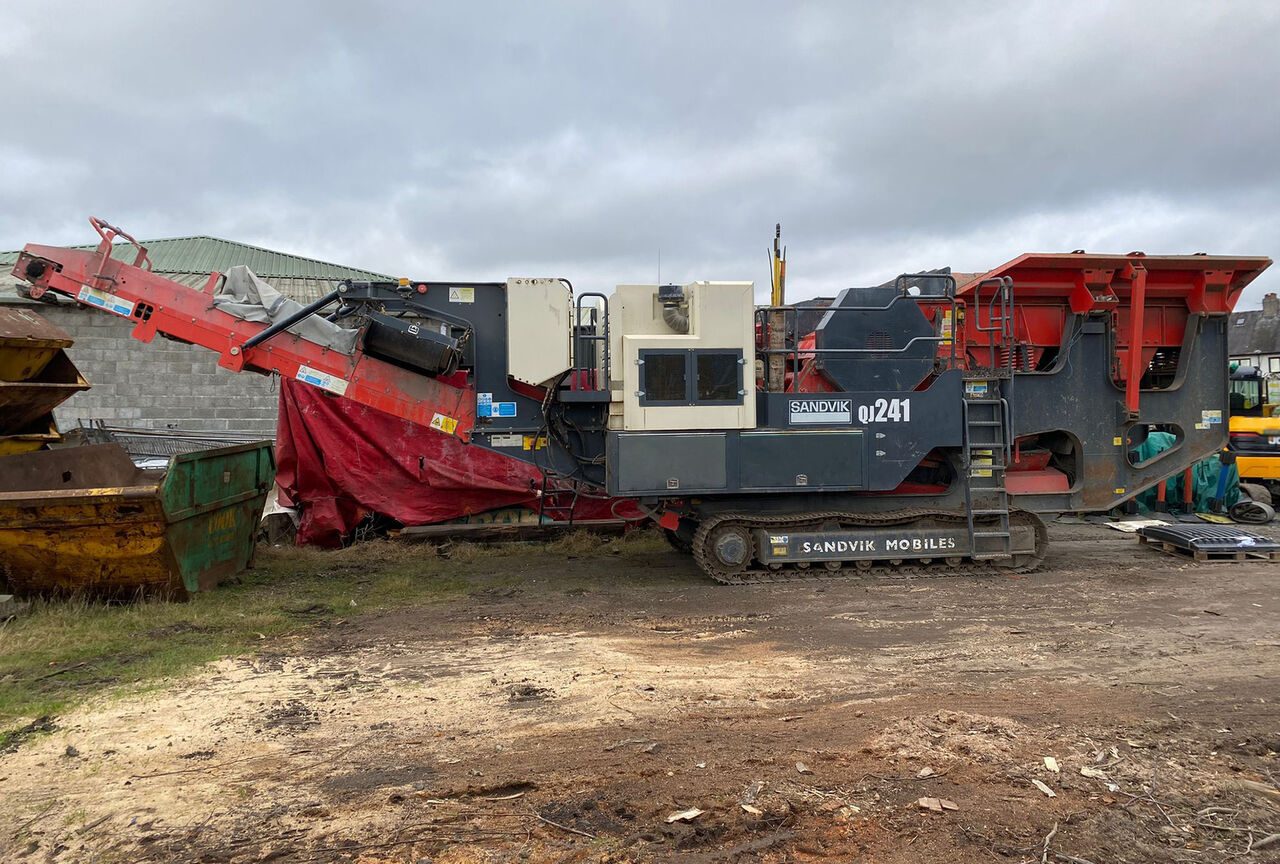

The 2017 Sandvik QJ241 Mobile Jaw Crusher is engineered for versatility and efficiency. Its compact size makes it suitable for operations in tight spaces, while its powerful CAT C7.1 engine ensures robust performance.
Key Specifications:
-
Engine: CAT C7.1, 168 kW (225 hp)
-
Feed Opening: 1,000 x 650 mm (40 x 26 in.)
-
Max. Feed Size: 520 mm (21 in.)
-
Capacity: Up to 225 mtph (248 stph)
-
Operating Weight: Approximately 33,500 kg (73,855 lbs)
-
Transport Dimensions: Length: 13.9 m; Width: 2.5 m; Height: 3.2 m
Features:
-
Hydraulically adjustable jaw setting for optimal output
-
Reverse crushing action to handle sticky materials and clear blockages
-
Hydraulic drive allows the crusher to start under load, minimizing downtime
-
Jaw level sensor for automated feed rate control
-
Raise/lower facility on the main conveyor for improved discharge clearance
