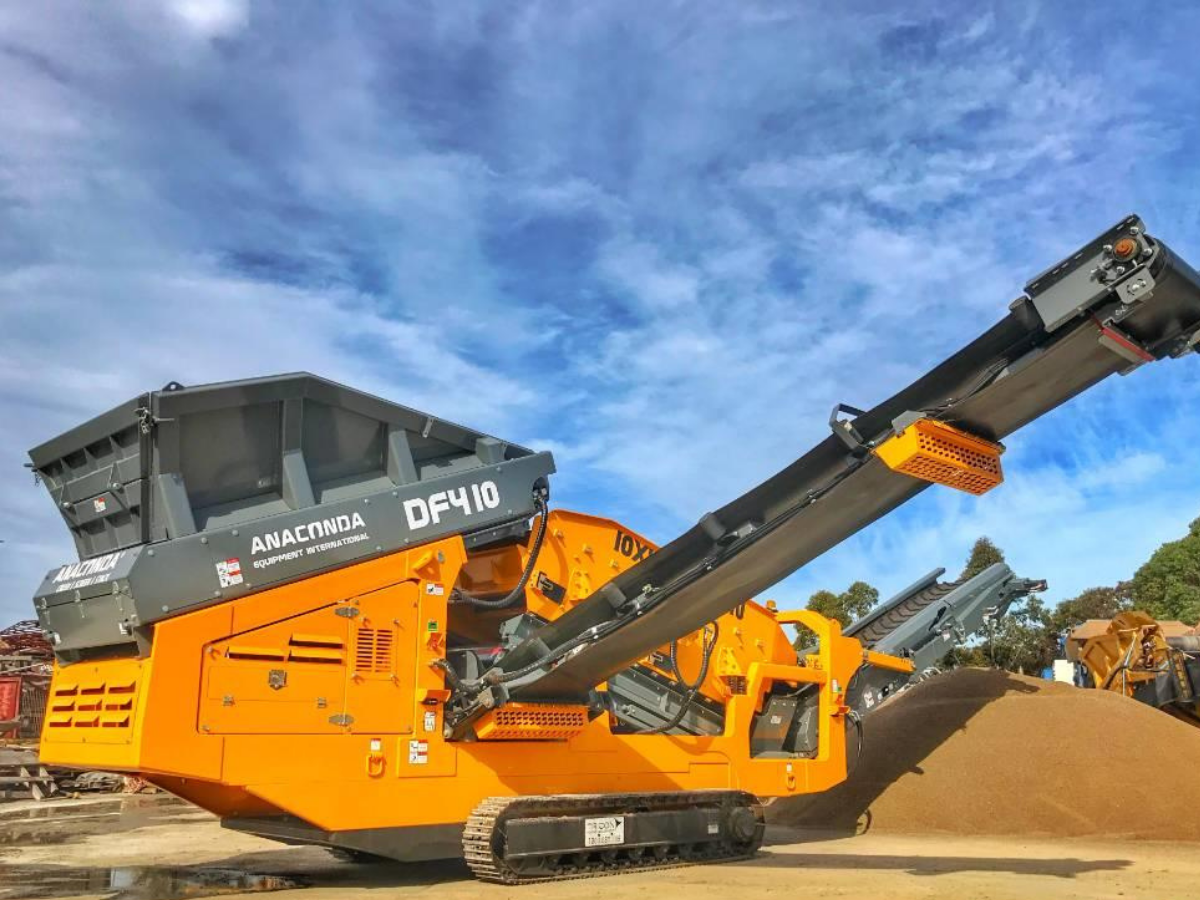

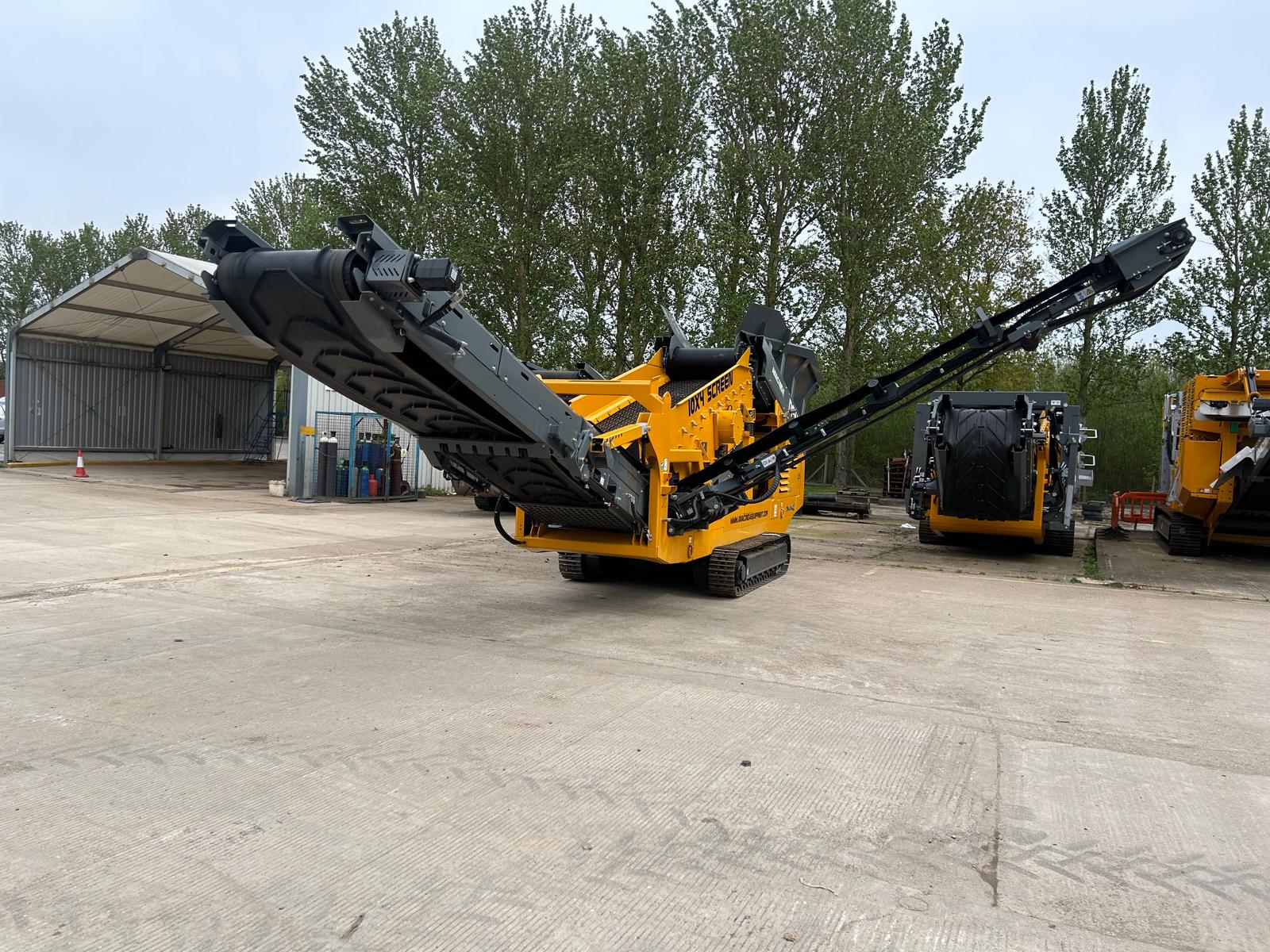

The Anaconda DF410 is engineered to deliver exceptional screening performance while maintaining a compact footprint. Its 3m x 1.2m (10′ x 4′) two-bearing screen box is the largest in its class, ensuring efficient processing of materials. The machine’s design allows for quick setup, easy transportation, and versatility across multiple job sites.
Key Specifications:
-
Engine: Deutz TD2.9 L4, 50 kW (67 HP), Stage V compliant
-
Screen Box: 3m x 1.2m (10′ x 4′) two-deck
-
Throughput Capacity: Up to 300 TPH
-
Operating Weight: 15,600 kg
-
Transport Dimensions (L x W x H): 9.9m x 2.35m x 3.1m
-
Screen Angle: Fixed at 15°
-
Conveyor Belts: Variable speed control (excluding fines collection conveyor)
-
Hopper Tailgate: Flip-down design for direct feed from crusher belt
-
Tail Conveyor: Hydraulically lowers for access to bottom screen deck
-
Conveyors: Hydraulic folding tail conveyors
-
Screen Deck Tensioning: Side tensioned top deck; end tensioned bottom deck
-
Engine Compartment: Easy access for maintenance
-
Transportability: Fits into a 40′ container without breakdown
-
Optional Features:
-
Screen decks available in mesh, bofar bars, finger screens, or punch plates
-
Radio remote control
-
Overband magnet on oversize conveyor
-
