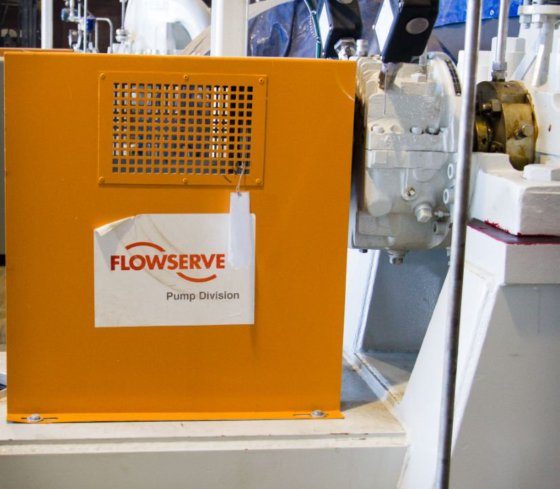

The Flowserve 6UZDL25 is engineered for demanding applications requiring reliable performance and ease of maintenance. Its axially split, between-bearings design allows for straightforward inspection and servicing without disturbing the piping. The pump features a double-suction first-stage impeller, ensuring low NPSH requirements and balanced hydraulic loads.
Key Specifications:
-
Flow Rate: Up to 2,880 GPM (654 m³/h)
-
Total Dynamic Head: 946 feet (288.3 meters)
-
Motor Power: 1,000 HP (745.7 kW)
-
Operating Speed: 1,783 RPM
-
Impeller Diameter: 23.11 inches (587 mm)
-
Suction Flange: 10” 600# RF
-
Discharge Flange: 6” 600# RF
-
Casing Material: S-6 (carbon steel)
-
Rotation: Counterclockwise (CCW)
