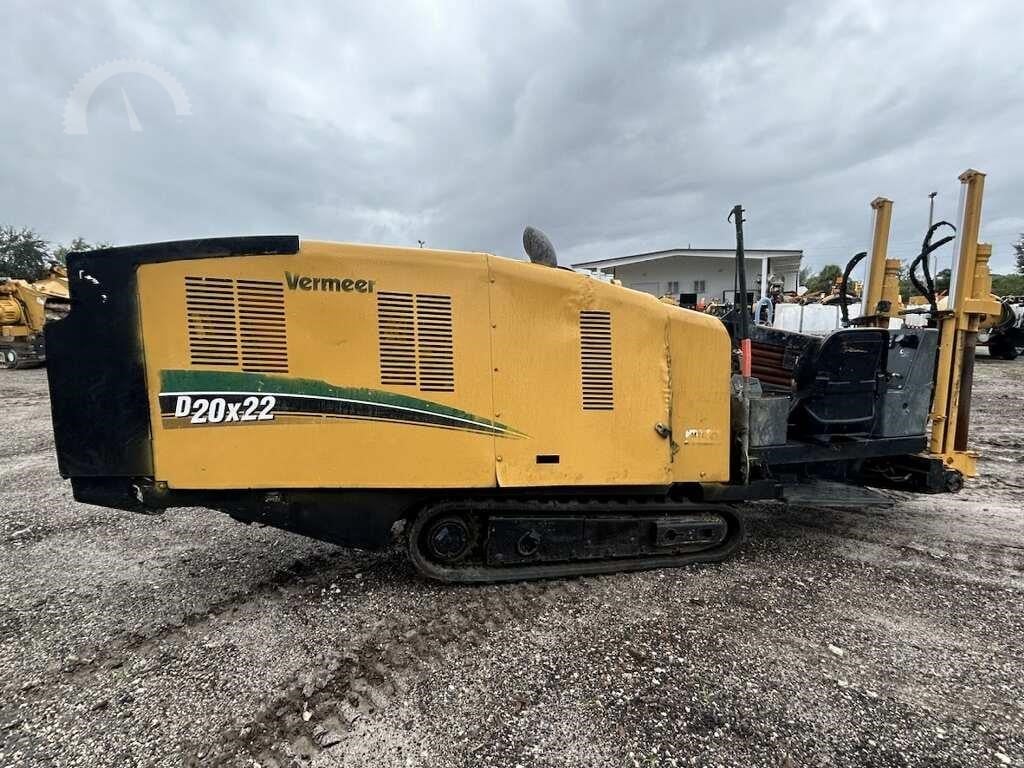

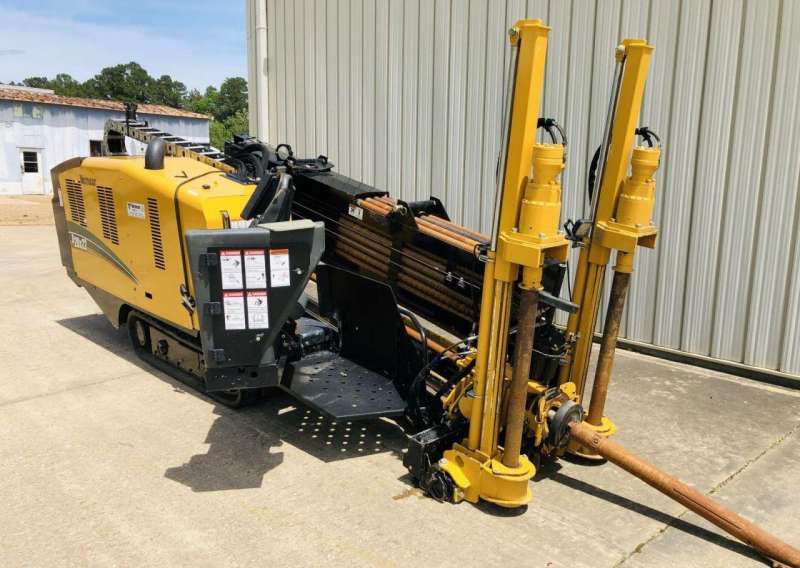

The 2018 Vermeer Navigator D20x22 S3 horizontal directional drill is engineered for performance and reliability in utility installation projects. Its compact design allows for easy maneuverability in confined spaces, while its robust engine and advanced features ensure optimal productivity.mascus.com
Key Specifications:
-
Engine: Deutz TD2.9, 74 HP (55.2 kW), Tier 4 Final
-
Thrust/Pullback: 19,500 lbs (86.7 kN)
-
Maximum Spindle Torque: 2,250 ft-lb (3,050.6 Nm)
-
Maximum Spindle Speed: 257 rpm
-
Maximum Carriage Speed: 167 ft/min (50.9 m/min)
-
Minimum Bore Diameter: 3 in (7.6 cm)
-
Drill Rack Angle: 17°
-
Ground Drive Speed: Up to 3.3 mph (5.3 km/h)
-
Dimensions (L x W x H): 204 in x 47.5 in x 74 in (518.2 cm x 120.7 cm x 188 cm)
-
Operating Weight: Approximately 11,700 lbs (5,307 kg)
