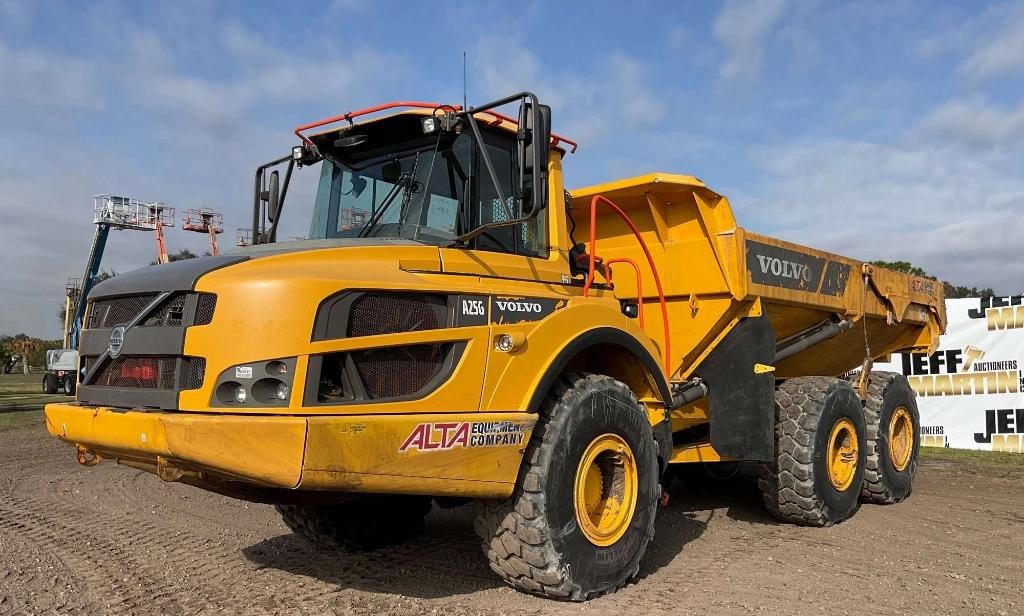

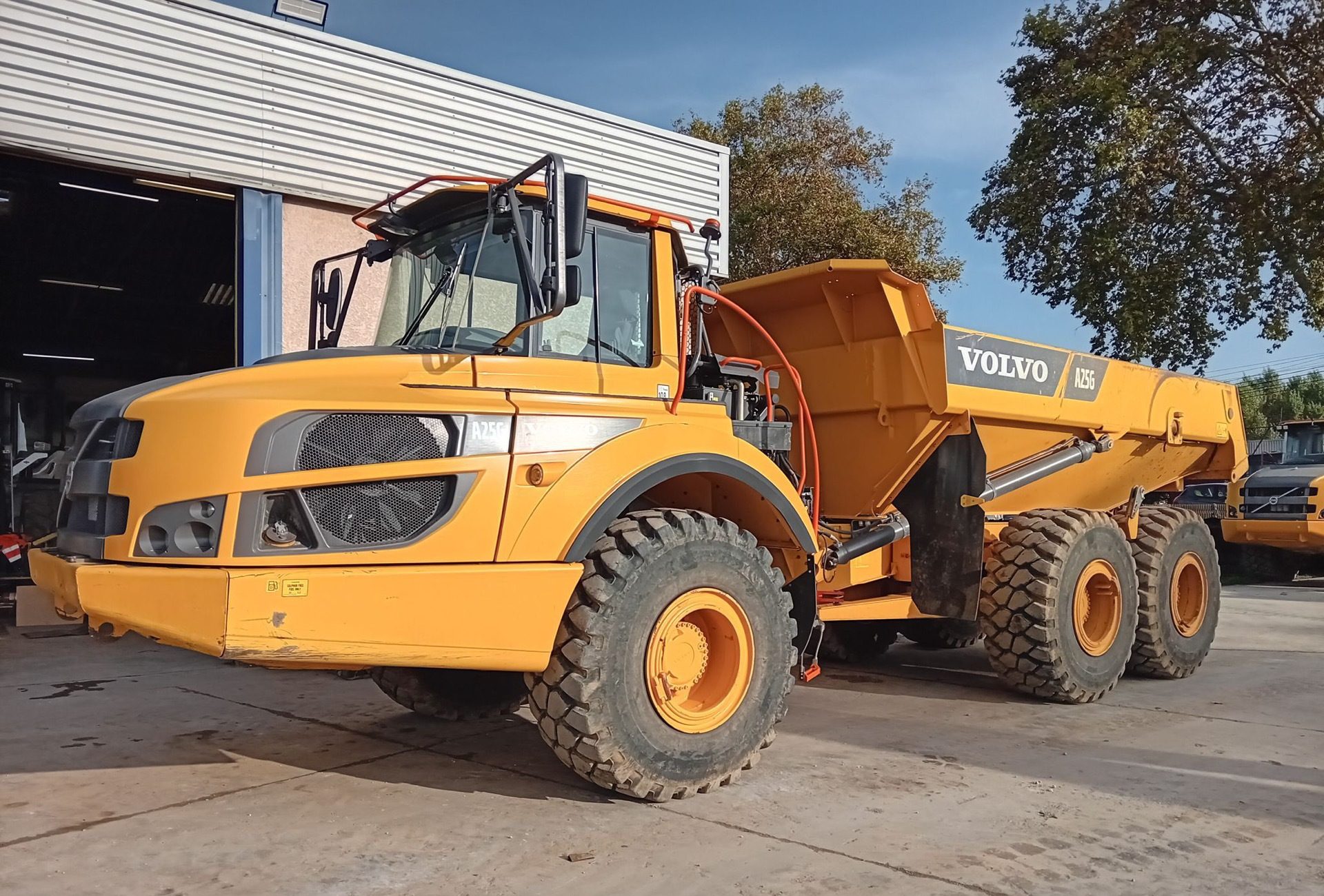

The 2021 Volvo A25G Articulated Dump Truck combines power, efficiency, and reliability. Equipped with a Volvo D11M engine delivering 315 hp, it meets Tier 4 Final emission standards. The A25G’s design focuses on operator comfort, safety, and ease of maintenance, making it a preferred choice for demanding job sites.
Key Specifications:
-
Engine: Volvo D11M, 10.8L, Tier 4 Final
-
Gross Power: 315 hp (235 kW) @ 2,100 rpm
-
Max Torque: 1,505 lb-ft (2,040 Nm) @ 1,100 rpm
-
Payload Capacity: 28 short tons (25.4 metric tonnes)
-
Body Volume (Heaped): 20 yd³ (15.3 m³)
-
Transmission: Volvo PT 2116, 6 forward and 2 reverse gears
-
Max Speed: 33 mph (53 km/h)
-
Operating Weight (Empty): 49,494 lbs (22,450 kg)
-
Operating Weight (Loaded): 104,499 lbs (47,400 kg)
-
Dimensions (L x W x H): 34 ft x 17 ft x 11 ft (10.4 m x 5.2 m x 3.4 m)
-
Ground Clearance: 2 ft (0.6 m)
